M150MC4 Print Hour and Minute Format Settings

Customizing the minute format allows you to tailor your printouts. You have the option to select 12-Hour or 24-Hour format. For minutes, you may select standard minutes, hundredths, twentieths, or tenths of an hour. The printed hour and minute format does not need to match the displayed time format. Use the steps below to select your preferred format.

When you are setting a digit or an option on the display, flashing means that it is ready to be changed. You must press SELECT until you reach the desired digit or option. Then press SET to lock the desired value in place. Printing is always disabled while settings are being changed. Once the final SET has been completed in any given operation, printing is enabled.

Hour Format Options

Option	Type of Minute	Print Example
1	12 Hour (AM/PM)	JAN 31 PM 3:00
2	24 Hour (Military Time)	JAN 31 15:00

Minute Format Options

Option	Type of Minute	Print Example
1	Standard Minutes (1/60 Min)	JAN 31 2008 AM 10:10
2	Hundredths (1/100 Min)	JAN 31 2008 AM 10.17
3	Twentieths (1/20 Min)	JAN 31 2008 AM 10.15
4	Tenths (1/10 Min)	JAN 31 2008 AM 10.1

To set the printed minute and hour format on the M150MC4:

1. Unlock the unit and remove the cover. Refer to our Getting Started article for how to Open the Unit.

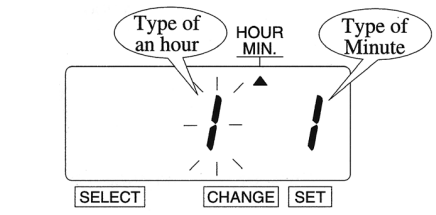

2. Press SELECT until the arrow points to HOUR/MIN. The flashing digit indicates "Type of Hour".




3. Press CHANGE until the displayed option matches your preferred hour format according to the Hour Format Options chart above.
4. Press SET. The flashing will change from "Hour" to "Minute".




5. Press CHANGE until the displayed option matches your preferred minute format according to the Minute Formal Options chart above.
6. To complete your selection, press SET until the unit returns to normal operation mode.
7. Replace the cover and lock the unit. Refer to our Getting Started article for how to Close the Unit.
