M150MC4 Left or Right Margins Print Settings Follow

Avatar
Kristina Hofreiter
  • Updated

Adjust the Print Direction settings to set the margin alignment.

When you are setting a digit or an option on the display, flashing means that it is ready to be changed. You must press SELECT until you reach the desired digit or option. Then press SET to lock the desired value in place. Printing is always disabled while settings are being changed. Once the final SET has been completed in any given operation, printing is enabled.



Print Direction

The Print Direction determines whether the text will align with the right or left margin.



Print Direction Options

Option Print Direction
1 Right-Hand Margin
2 Left-Hand Margin



To change the print direction on the M150MC4:

  1. Unlock the unit and remove the cover. Refer to our Getting Started article for how to Open the Unit.
  2. Press SELECT until the arrow An arrow icon. points to PRINT DIRECTION/PRINT ACTIVATION. The flashing digit indicates "Print Direction Options".

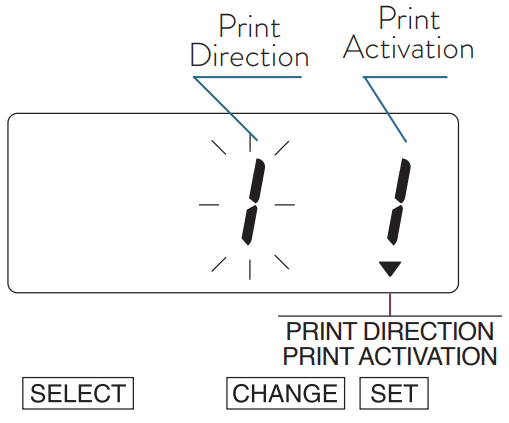

    A graphic of the time clock display showing the arrow icon pointing toward PRINT DIRECTION PRINT ACTIVATION. The first digit is the number 1, surrounded by lines indicating blinking, and labeled as Print direction. The second digit is labled as Print Activation.

  3. Press CHANGE until the display option matches your preferred print direction according to the Print Direction Options table above.
  4. Press SET to confirm. The second number will begin flashing.
  5. Ensure the second number is set to 1 (Automatic). Press CHANGE to select 1 if it is not already.
  6. Press SET until the unit returns to normal operation mode.
  7. Replace the cover and lock the unit. Refer to our Getting Started article for how to Close the Unit.
