Getting Started with Your M150MC4 Time Recorder Follow
You received your Acroprint Model M150MC4 Time Recorder and you're ready to get started. Setting up your Time Clock is quick and easy. After reviewing this article, continue to our Guide to Programming to customize the device to your needs before use.
In this article:
- Packaging Contents
- Opening and Closing the Unit
- Wall Mounting Instructions
- Power the Unit
- Settings and Control Buttons
- Attached Manual and Mounting Template
Packaging Contents
Unpack the time recorder and check its contents to ensure that the time recorder unit and all accessories below are included. If equipment has been damaged, contact us.
- M150MC4 Time Recorder
- Power Adapter
- Wall Mount Template
- User Manual
- Quick Start Guide
- (2) Keys
- (1) Factory Installed Ribbon Cassette
Opening and Closing the Unit

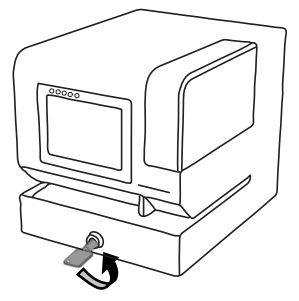

Open the Unit
Ensure the clock is powered off before removing the cover. Opening the top cover while the clock is powered on can easily trigger printing. Power the clock back on to adjust the settings.
Insert the key into the lock on cover of the unit. Turn the key in the clockwise position to unlock the unit. Remove the cover.

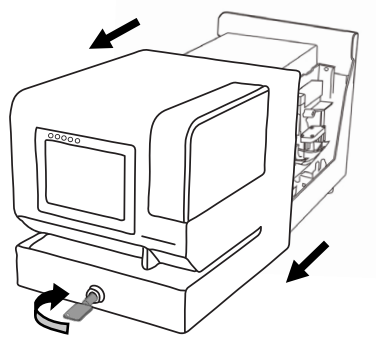

Close the Unit
Replace the cover. Insert the key into the lock on the cover of the unit. Turn the key counter-clockwise to lock the unit.
Wall Mounting Instructions
The M150MC4 is recommended to be mounted on wooden/plywood walls, masonry walls, or sheetrock/hallow core walls using two ST 4x20 screws and fasteners.

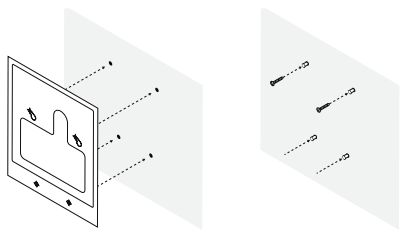

- Drill holes with a 3/16" bit as indicated by the included mounting template (attached below).
- Insert the anchors into all the holes.
- Screw in the top two screws. Be sure to keep about 6mm (1/4") of the screw head away from the wall.

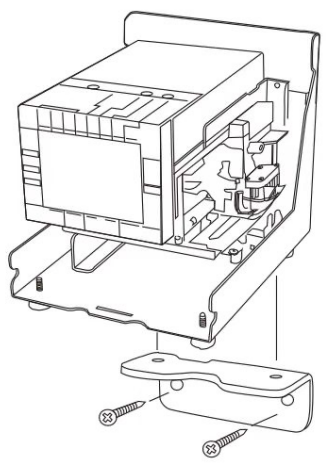

- Attach the bracket to the wall with the bottom two screws.
- Feed the power cable through the hole in the bracket and plug it into the clock.
- Hang the clock on the top screws.
- Secure the remaining screws through the bracket into the bottom of the clock.
Power the Unit
To power the device, plug the power cord into the back of the M150MC4, then plug it into a power outlet. If you are experiencing power issues, confirm the power cord is securely plugged in or try an alternate outlet.
Settings and Control Buttons
Control Buttons
The M150MC4 has three (3) control buttons enabling you to quickly locate and adjust a variety of settings.
| Control Button | Function |
|
SELECT |
Press SELECT to choose the desired program setting mode. The selected program setting is indicated by the pointing arrow on the display. |
| CHANGE | Press CHANGE to cycle through the options. |
| SET | Press SET to set the option. After an option has been set, always press SET again to return the device to normal operation mode. |
Settings
To enter the program setting mode:
- Make sure the power cord is plugged into a power outlet after removing the cover.
- Press SELECT once. The recorder will change to the program mode showing the pointing arrow on the display positioned under the TIME mark.
Things to remember when adjusting the M150MC4 settings:
- You must open the unit to make changes to the settings.
- After performing each procedure on the unit, remember to press SET until the unit returns to normal operation mode.
- To exit program mode anytime, press SET until the unit returns to normal operation mode.
- When you are setting a digit or an option on the display, flashing means that it is ready to be changed. You must press SELECT until you reach the desired digit or option. Then press SET to save your choice.
- Printing is always disabled while settings are being changed. Once the final SET has been completed in any given operation, printing is enabled.
- After updating the settings, replace the cover and lock it.
Programming the Device
Continue on to our Guide to Programming the M150MC4 Time Recorder for step-by-step instructions to program every setting from start to finish. You can also locate individual articles for each setting by clicking this link.
